Description

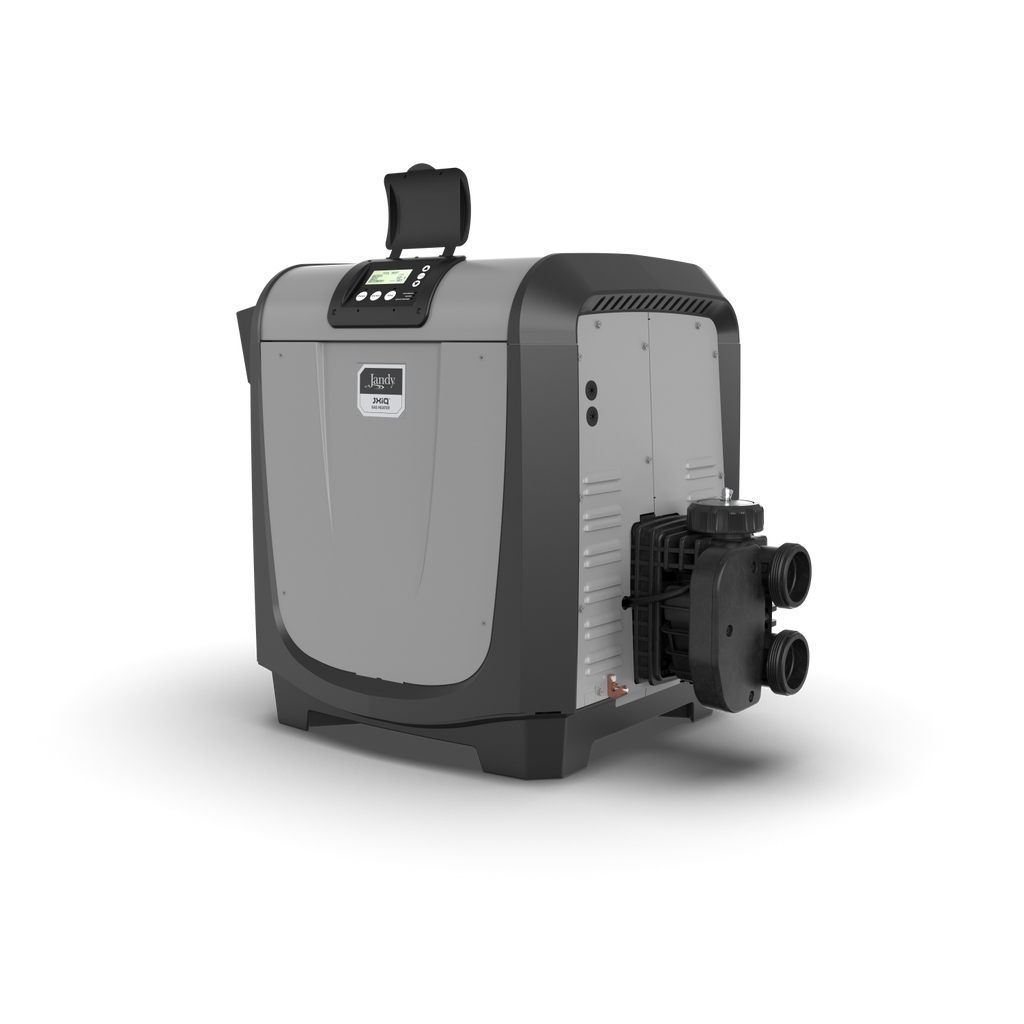

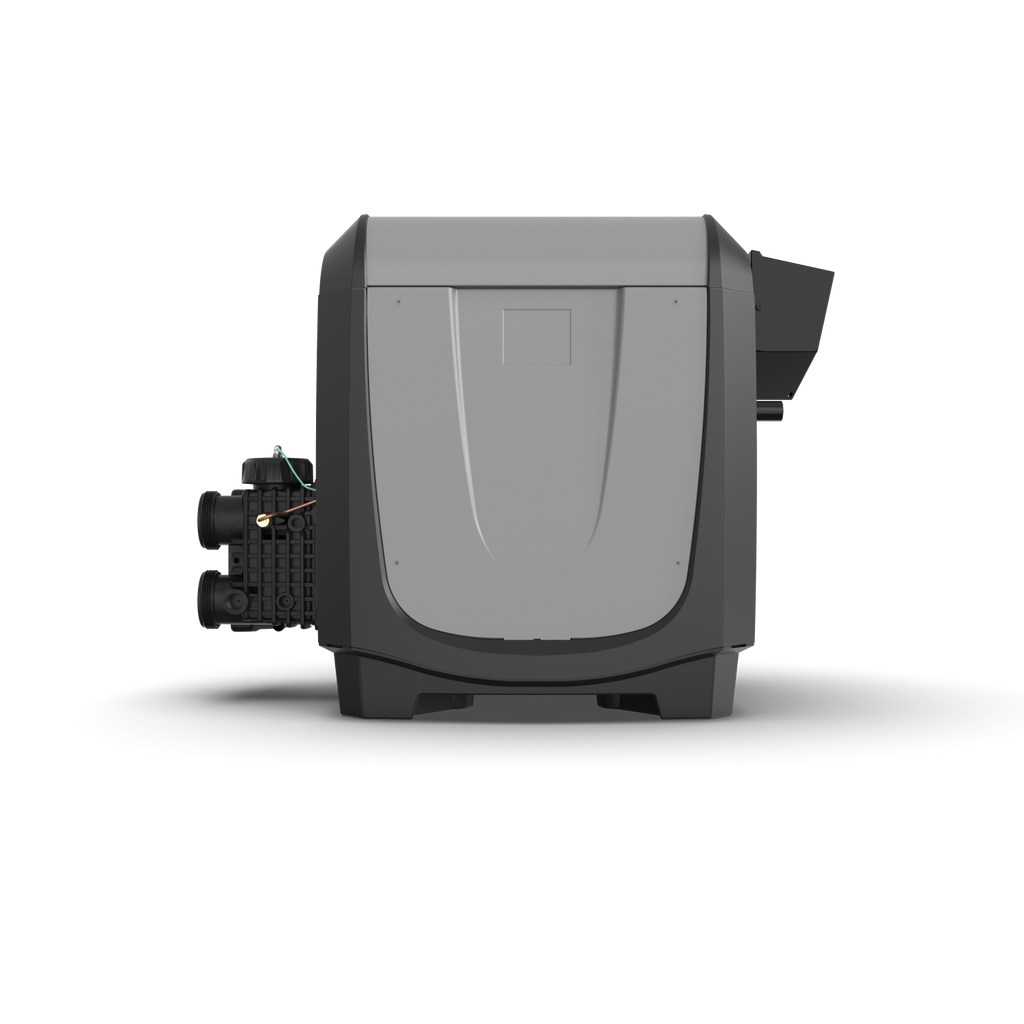

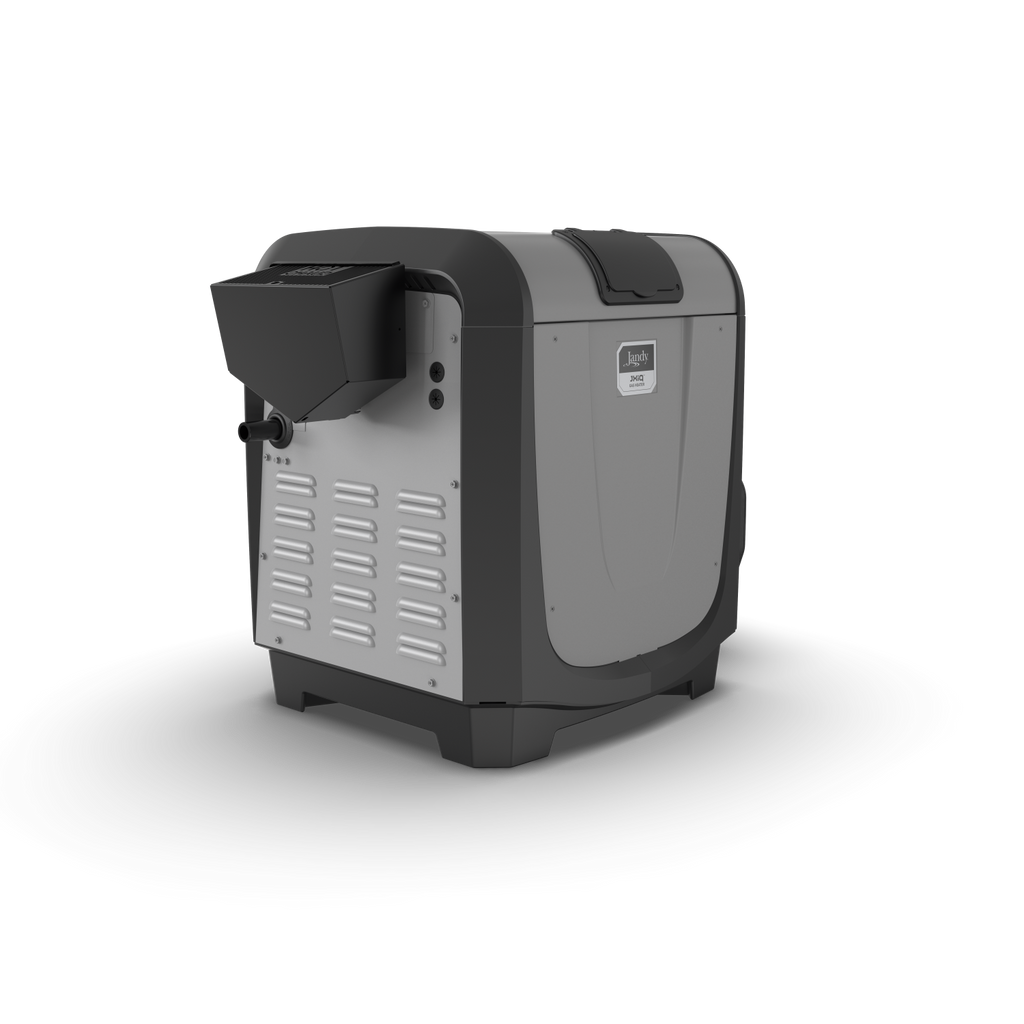

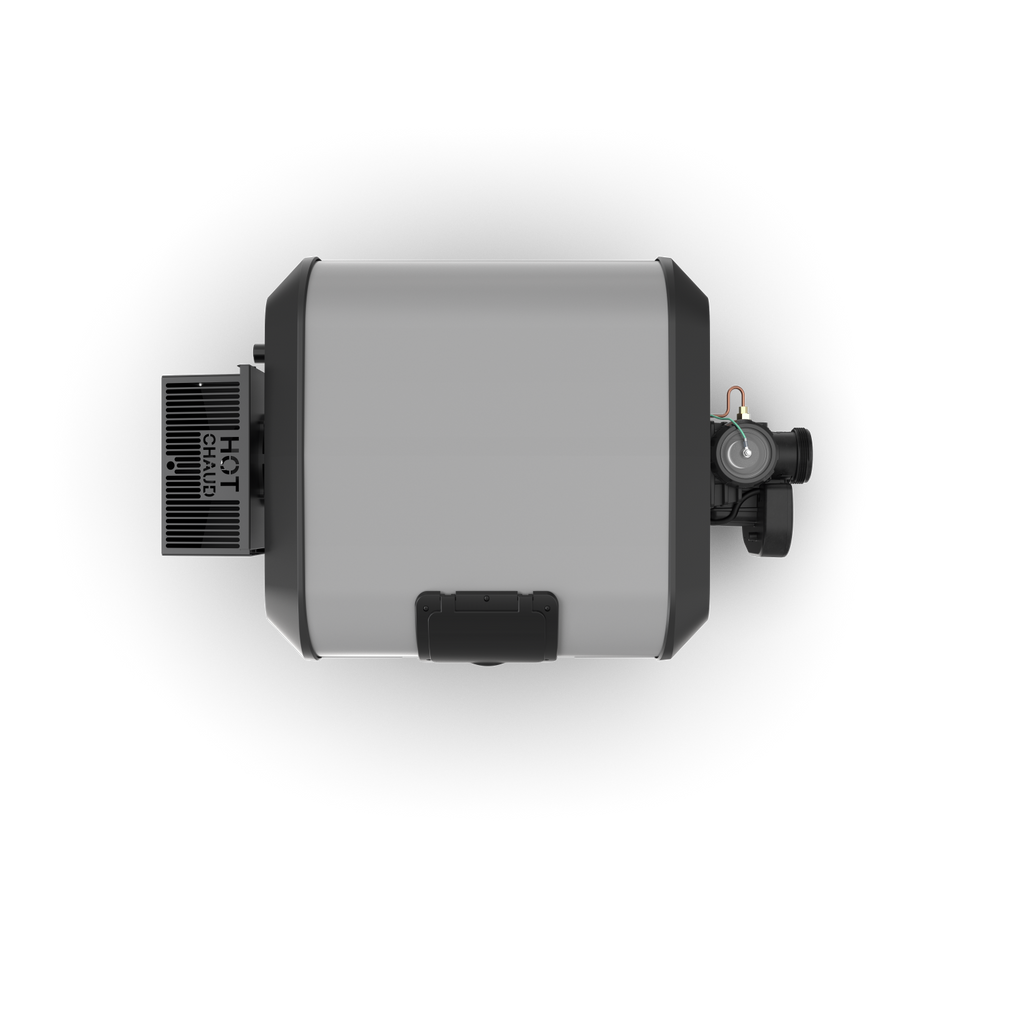

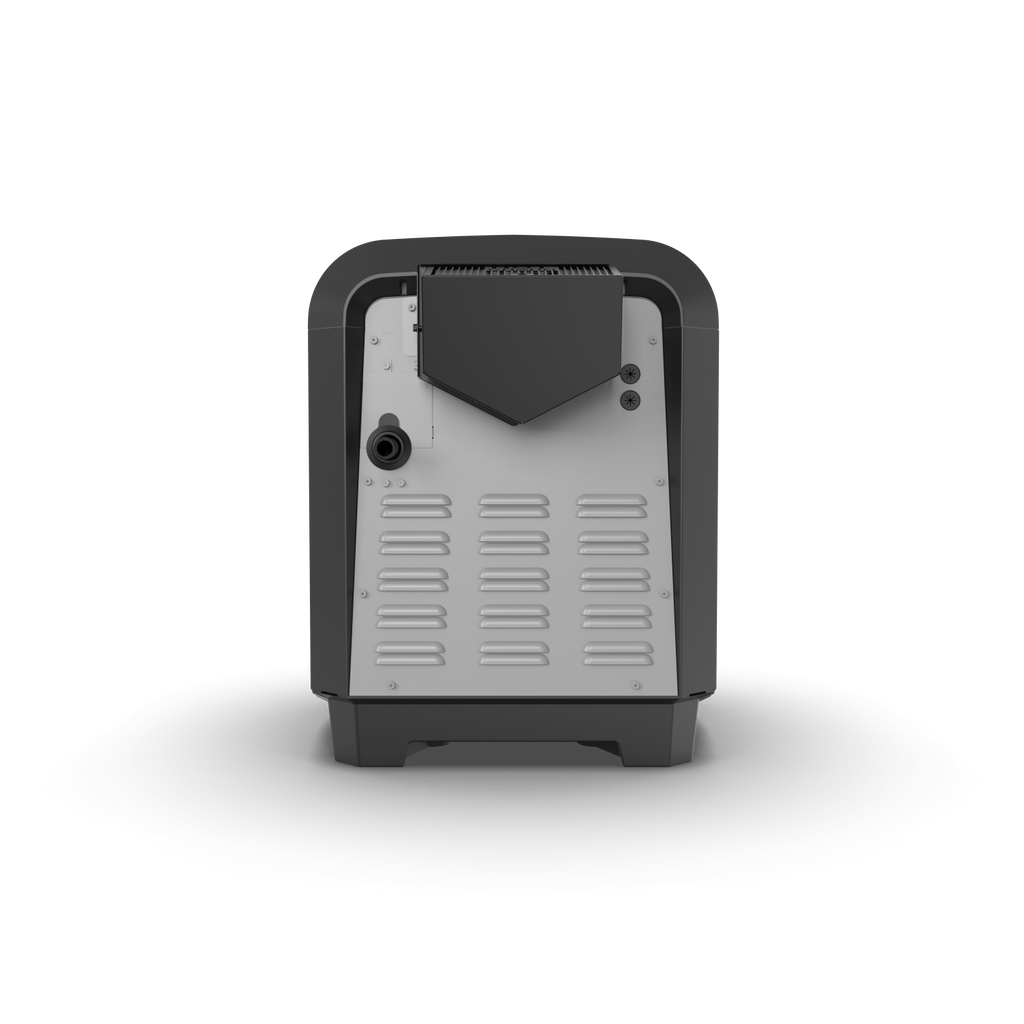

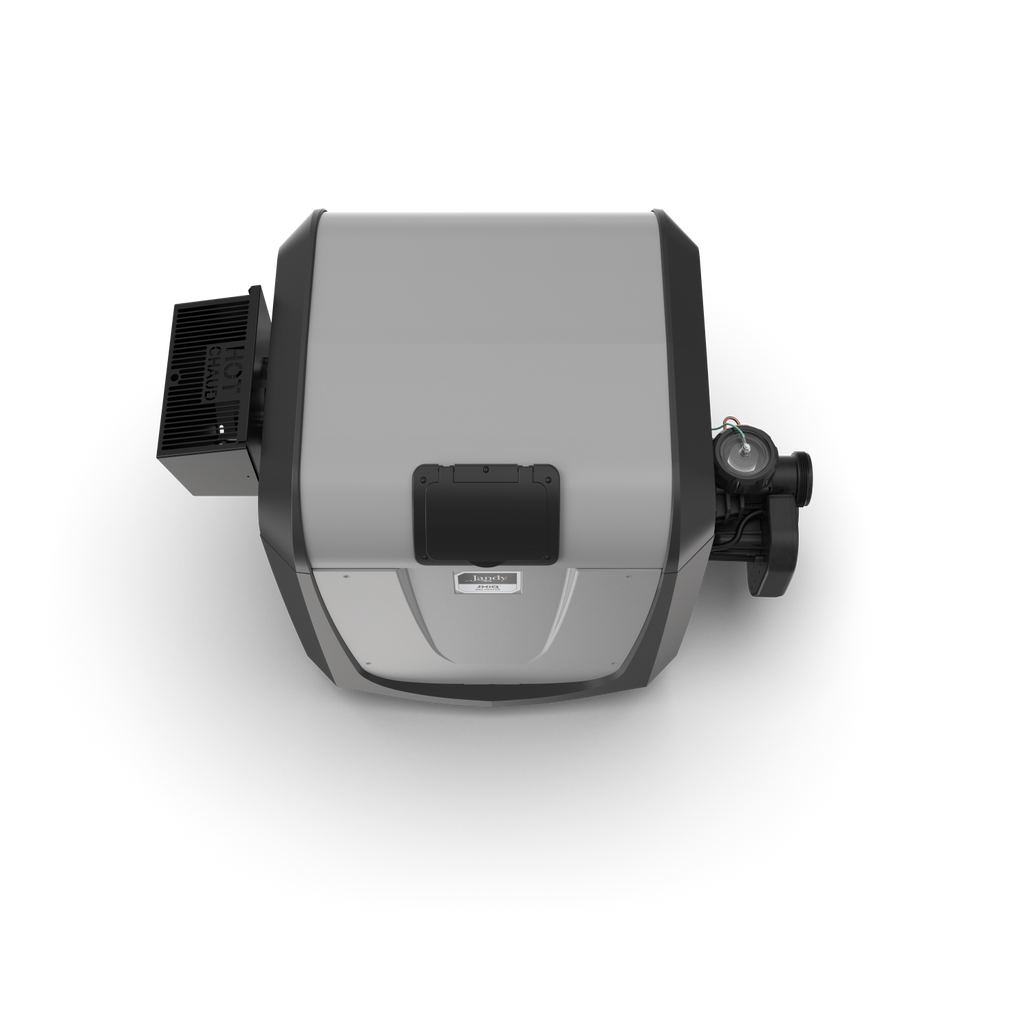

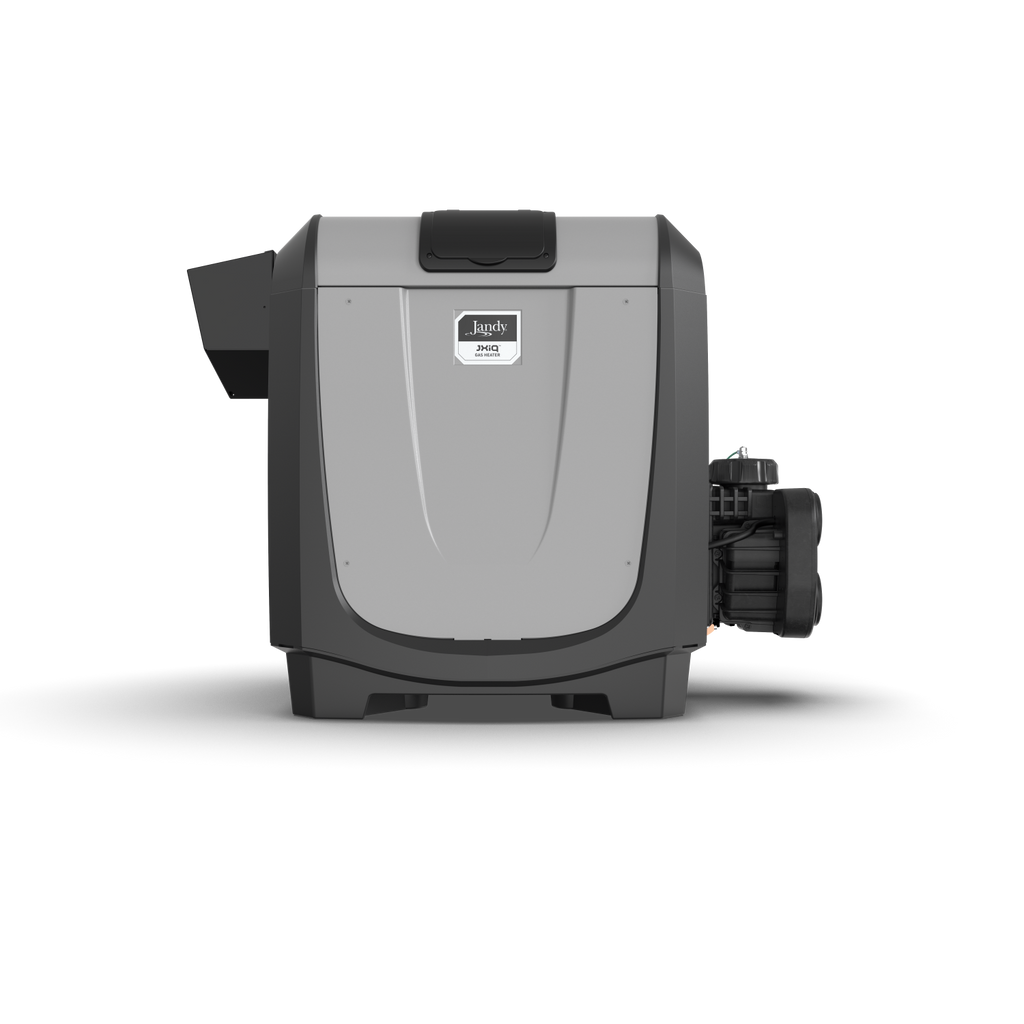

Jandy JXiQ Pool Heater
The JXiQ is designed with features to ensure proper installation and operation such as auto-sensing dual voltage functionality and a one-of-a-kind low gas pressure switch to prevent ignition when it doesn’t sense enough pressure.
Engineered with additional sensors for unparalleled self-diagnostic capabilities, troubleshooting service calls is a cinch since you can detect and resolve issues quickly — allowing you to complete more calls in a day.
Part of the JXi lineup that’s known for its compact size and durable construction that protects against rodents, the JXiQ further enhances longevity with a sacrificial anode that draws corrosive materials in the water away from susceptible parts and equipment.
For pool owners’ convenience, this next generation heater can calculate heat up time and provides at-a-glance status updates on a large display or in the iAquaLink® app.
The SMARTEST Way to Heat Your Pool and Spa
Estimates heat up time
Calculates and displays how long it will take water to reach desired temperature setpoint
Heat when you want. Save energy when you don’t.

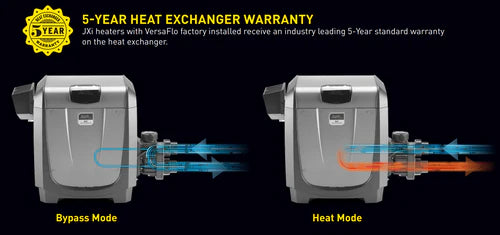

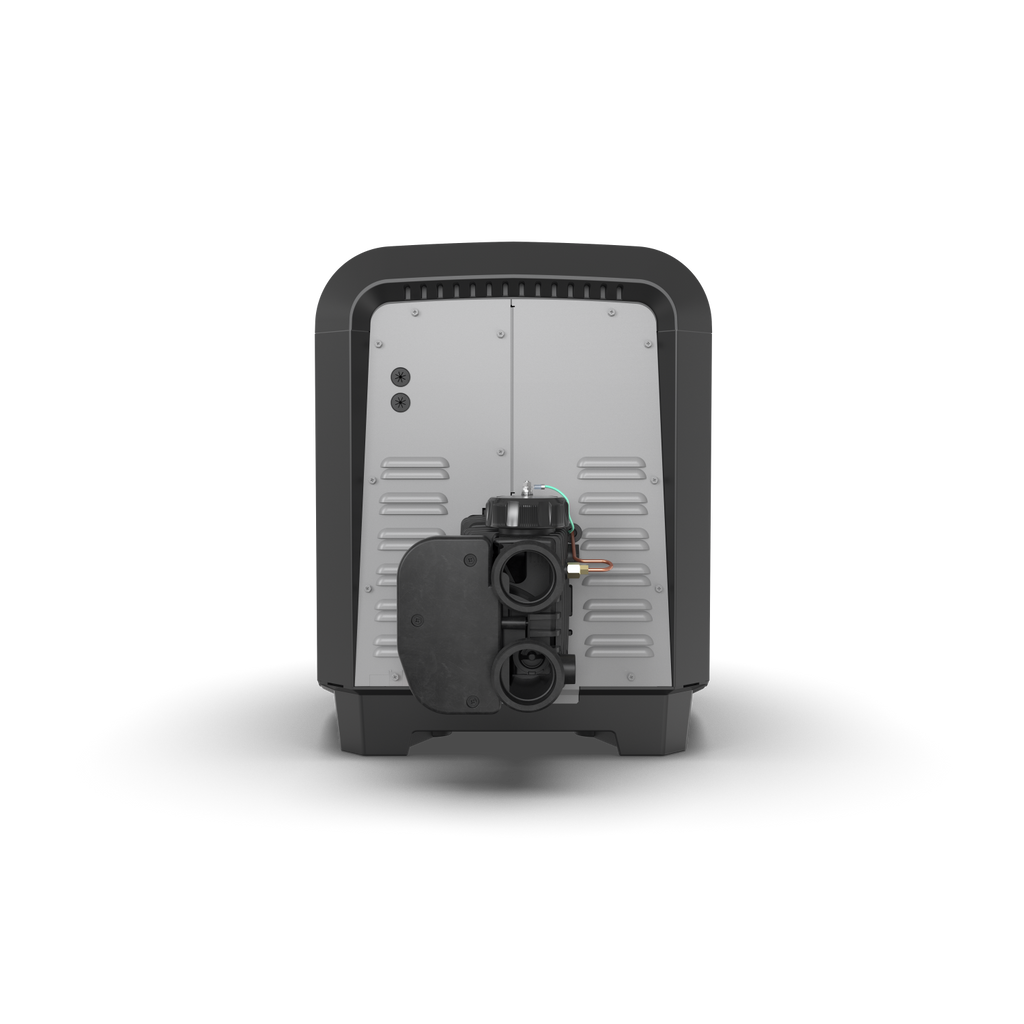

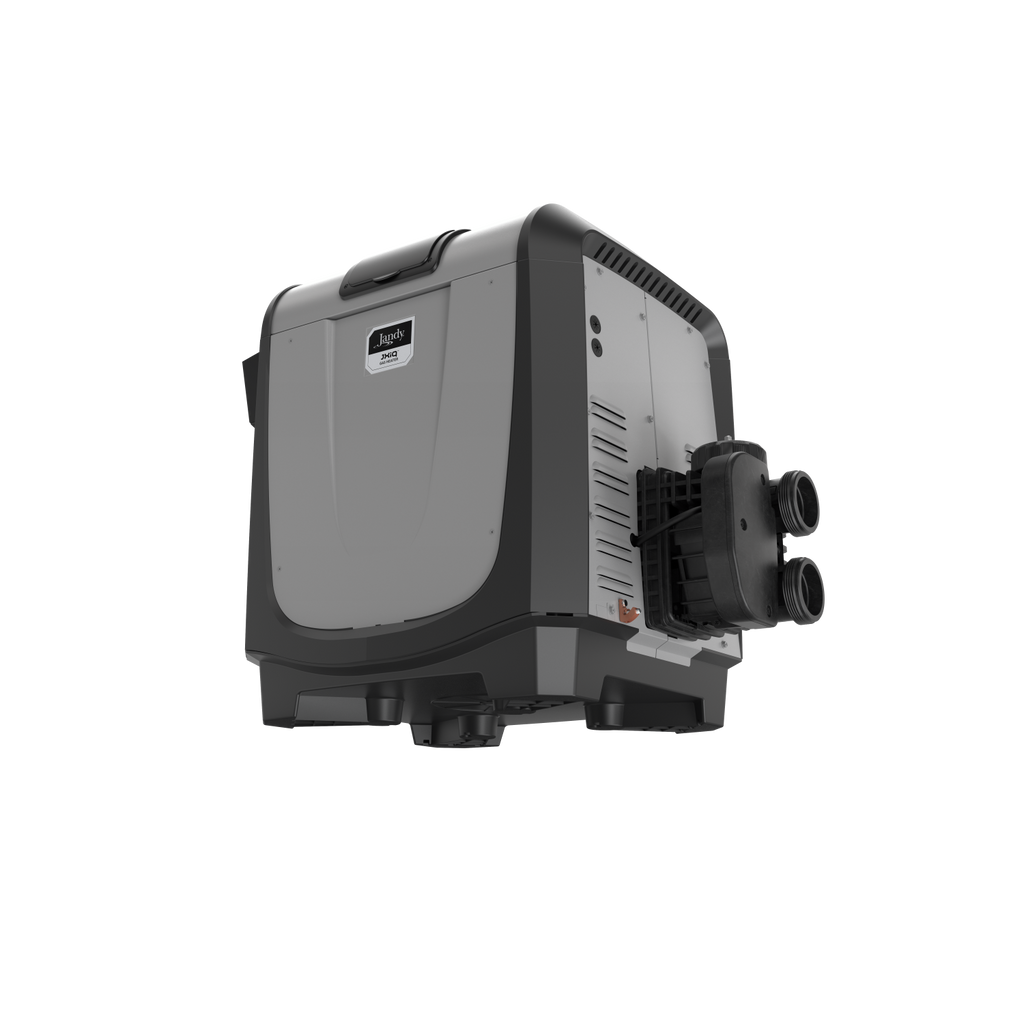

Innovative VersaFlo Integrated Bypass technology* automatically directs water through the heat exchanger only when heat is needed
*VersaFlo Integrated Bypass is available factory-installed on all non ASME compliant models.

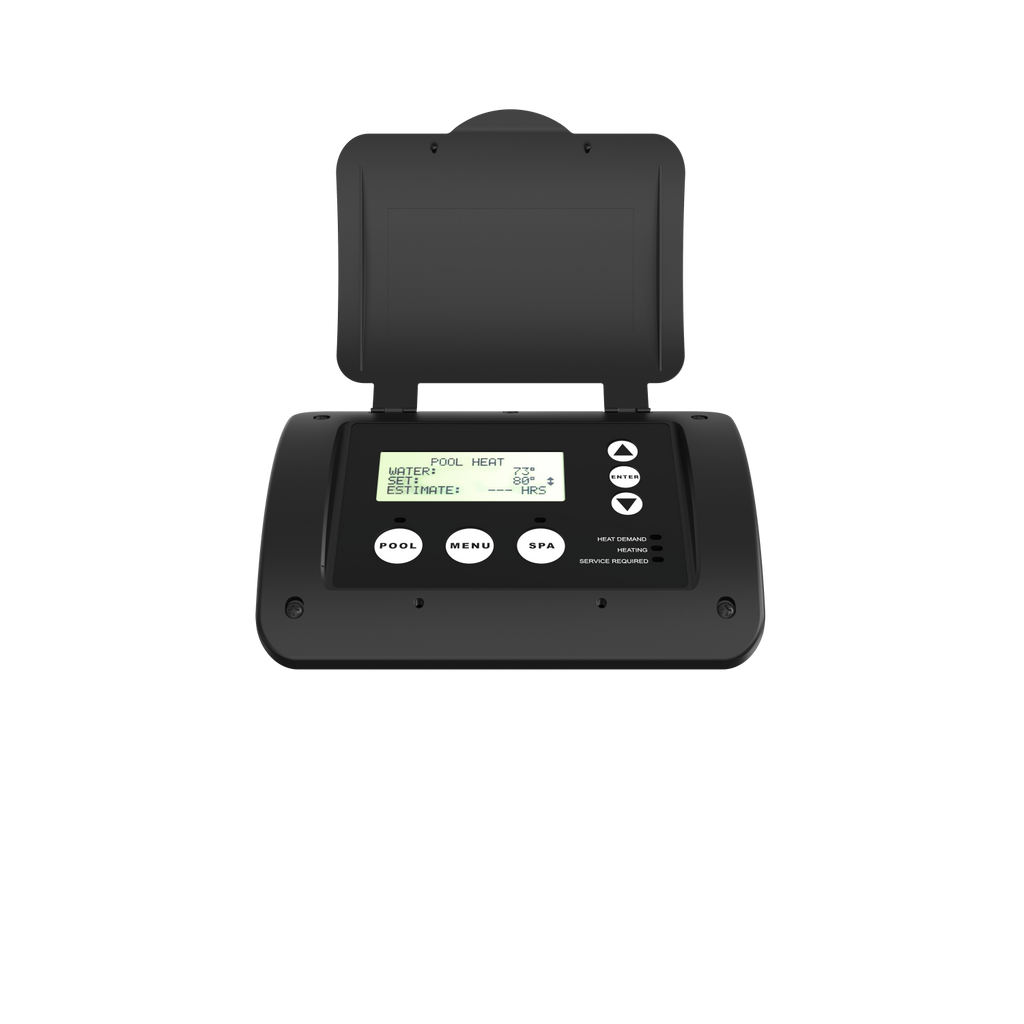

Largest Display in the Industry
Digital display is 50% larger than before and capable of showing 80 characters
Low Gas Pressure Sensor
Ensures there’s enough gas pressure to safely ignite
Optimize Flow
Measures temperature rise between the inlet and outlet to optimize flow and avoid heat exchanger failures
Auto-Sensing Power Input
Automatically adjusts to supplied power when installed, no cards to flip and no wires to change
Superior Corrosion Defense
A sacrificial anode draws corrosive elements in the water away from susceptible parts and equipment *Not included on JXiQ ASME models
JXiQ™ Gas Pool & Spa Heater Specifications
Includes VersaFlo Bypass |
Yes |
|---|---|
Depth |
22.1" |
Efficiency |
84% |
Energy Star |
No |
Exchanger |
Copper |
Fuel Type |
Natural Gas |
Headers |
Hi-Temp Poly |
Height |
26.5" |
Input Rate BTUH |
200K BTUH |
Max. GPM |
100 |
Min. GPM |
30 |
Pool Surface Area |
up to 300sft |
Professional Installation Required |
Yes |
Smart Product? |
Automation Compatible |
Vent Diameter |
6" |
Weight |
117 lbs |
Width |
22.9" |
