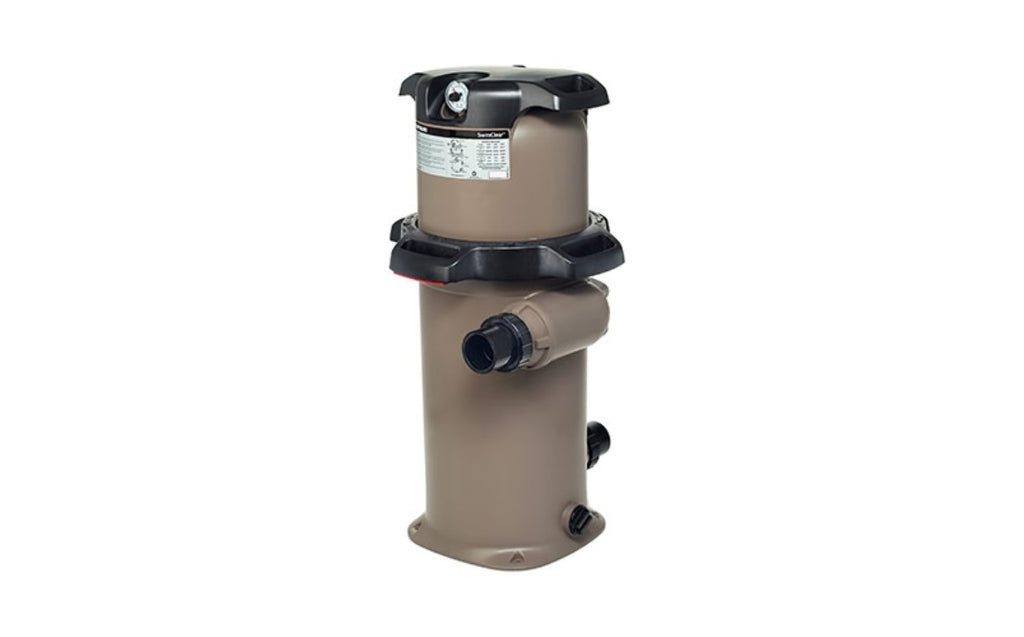

Hayward Swim-Clear Cartridge Filter


  • $660.99
    Unit price per
Shipping calculated at checkout.

Hayward Swim Clear Filters

SwimClear single element cartridge filters capture more dirt for superior water clarity without the need of supplemental media or backwashing, while the industry's lowest head loss reduces energy costs. SwimClear is also the easiest to service: the Easy-Lok™ ring design, comfort grip handles, and lowest lift height provide fast cleaning and element replacement. SwimClear is an excellent filtration solution for smaller and mid-size pools, spas and water features.

  • Industry-leading hydraulic efficiency allows the pump to run at a lower speed or for less time, increasing energy savings
  • Easy-Lok ring design allows quick access to internal components for quick and simple maintenance
  • Recessed pressure gauge and manual air relief enables user to place head assembly upside down on pool pad, protecting the seal from contamination
  • 2” x 2 1/2” union connections make installation and servicing fast and easy
Model Effective Filtration Area Union Connections P.L.U Code Dimen. W x H
C150S 150 ft. sq. 2” x 2.5” 660099
18.25" x 33 1/2”
C200S 200 ft. sq. 2” x 2.5” 767099
18.25" x x38 1/2”

Model Turnover 8 Hrs (Gal) Design Flow Rate Turnover 10 Hrs (Gal)
C150S 57,600 120 GPM 72,000
C200S 57,600 120 GPM 72,000
